SKU: MUD600-1
Sold Individually

600-Watt RMS Mono Block Powersports Amplifier

Powerful, yet compact, audio amplifier that can be installed on any UTV, sand rail, boat, or motorcycle.

The MTX MUD600-1 has class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit is a mono block amplifier capable of delivering 600-watts RMS power. More than enough power to drive a subwoofer.

Quick Glance Icons
  • 2-Ohm Stable
  • Class D

    Compact And Powerful

    The MTX MUD600-1 is the most compact subwoofer amplifier that MTX has ever made. This unit features class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit is capable of delivering 600 watts of RMS power. More than enough power to drive a subwoofer.

    Outdoor Rugged

    The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

    Use it Wherever

    The compact nature of the amplifier and its excellent efficiency make it ideal for a variety of UTV, marine and motorcycle applications.

    Installation Videos

    Amplifier Gain Settings

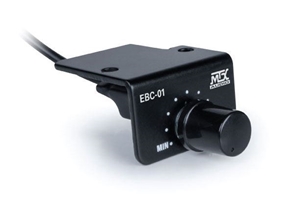

    External Base Controller Integration
    FEATURES
    • Compact Design - The small footprint chassis allows for installation in space challenged vehicles

    • Conformal Coated Circuit Board - Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions

    • Fixed Crossover - High and Low Pass Crossovers Allow Use with Full Range Speakers or Subwoofers

    • High and Low Level Inputs - Allows connection to both Speaker and  RCA Input signals

    SPECIFICATIONS
    Description Mono Block
    4Ω RMS Power Output 300W x 1 Channel
    2Ω RMS Power Output 650W x 1 Channel
    1Ω RMS Power Output NA
    Signal to Noise Ratio 85 dBA
    Topology Class D
    THD <1.0%
    Frequency Response 10Hz - 250Hz
    Crossover Variable Low @ 40 - 250Hz
    Height 1.85" (47mm)
    Width 5.51" (140mm)
    Depth 7.36" (187mm)
    Warranty Period 24 months from date of purchase
    SUPPORT FILES
    Owners Manual MUD600-1 Owners Manual (24 pages) View | Download
