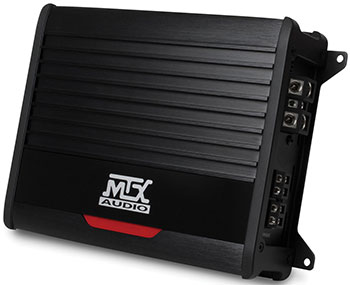

THUNDER500.1 500W RMS Mono Block Class D Amplifier

Car Amplifiers

High Power Small Chassis Amplification

High Power, Low Profile Amplification

MTX Thunder AmplifierFeel the Thunder

MTX THUNDER500.1 is designed to work with an assortment of subwoofers and is capable of delivering up to 1000 watts peak power (500 watts RMS) in an incredibly small package.

This monster amp features a high efficiency class D topology. This type of circuit is preferred for driving subwoofers due to its ability to minimize power loss to heat when you rock all night long.

Class D Topology 2Ω Stable

Availability: In stock
SKU: THUNDER500.1
Sold Individually

Surface Mount Design

Resists vibration for reliability under the harshest conditions

Small Footprint

Easy install in any vehicle, anywhere

Variable Crossover

Tune a wide range of speakers to perfection

Extruded Heatsink

Keeps the amplifier cool without a fan

High Power High Value

The THUNDER500.1 is a high powered subwoofer amplifier capable of delivering up to 500 watts RMS power at 2Ω. Additionally, the unit is designed to be installed in almost any vehicle due to its small chassis size.

Technologically Advanced

The THUNDER500.1 features surface mount technology. This design uses smaller more efficient parts that adhere to the circuit board much better than traditional through hole designs making it extremely vibration resistant.

WHAT OUR CUSTOMERS SAY!

Like what Thomas said this is also the best amp I have purchased in a long time. I went from a cea compliant 1200 watts rms @ 1ohm amp to this small little powerful beast and i must say this thing 1000 watts at 1 ohm beats my old 1200 watt rms amp by far and the bass quality running it at 1 ohm is truly amazing!! and it gets warm but not hot and that's normal. this amp made me want to get into system building for a hobby all over again thank you mtx!!

Charles 6/10

I have been a dedicated Rockford Fosgate amp user since 1992. I recently purchased an MTX 500 watt mono block and in the words of Rapunzel, "I am never going back." MTX beats RF on price, specs, customer service and warranty. I wish I had found out about MTX years ago.

eric 8/7

Wow! This amp has plenty of sharp clean pop on the bass end and clean crisp highs. This brand was recommended by a installation tech at a store that did not sell MTX. This is after a Soundstream Rubicon amp last three months and needed to be sent back twice for repairs. There is no comparison in the sound quality with the MTX high years ahead! ...Did I say 'Wow"?!

Gilbert 10/19

Easy Adjustment

The control panel on the THUNDER500.1 is easy to access and make adjustments. The unit includes a variable low pass filter and a selectable bass boost, 0, +6, or +12dB. The unit also features a subsonic filter that can be used in conjunction with a vented enclosure for optimal sound quality.

Secure Connections

The THUNDER500.1 uses set screw type connections for both its power and speaker terminals. The power and ground inputs will support up to a 4 AWG wire and the speaker inputs can support up to a 12 AWG wire. Set screw type connectors provide the most secure connection minimizing power loss and delivering all the power to the amplifier and to the speakers.

Remember The Amp Kit

Remember, you cannot install an amplifier without an amplifier kit. MTX recommends using a ZN5K-04 or ZN5K-08 to power the THUNDER500.1.

How to Properly Set Your Amplifier's Gain

Features
Small Footprint
Selectable Bass Boost: 0, 6, or 12dB
Surface Mount PCB Design
Variable Butterworth Crossover 12dB/Oct
Variable Subsonic Filter
Thermal, DC Offset, and Short Circuit Protection Circuitry
Extruded Aluminum Heat Sink
Tech Specs
Description Mono Block
RMS Power (Watts) 500
4 Ohm RMS Power Output 300W x 1 Channel
Signal to Noise Ratio 80dB
2 Ohm RMS Power Output 500W x 1 Channel
1 Ohm RMS Power Output NA
Topology Class D
THD <1%
Frequency Response 10Hz - 220Hz
Low Pass Filter Variable Low @ 40Hz to 220Hz 12dB/Oct
Subsonic Filter 10Hz to 50Hz 12dB/Oct Variable
Bass Boost 0 6 12dB Switchable
Max Sensitivity 200mV
Maximum Input Signal 5V
Height 6.3"
Width 8.94"
Depth 2.25"
Support Files
Owners Manual MTX004553 THUNDER Series Owners Manual (32 pages) View |  Download
50Hzmp3 Download
